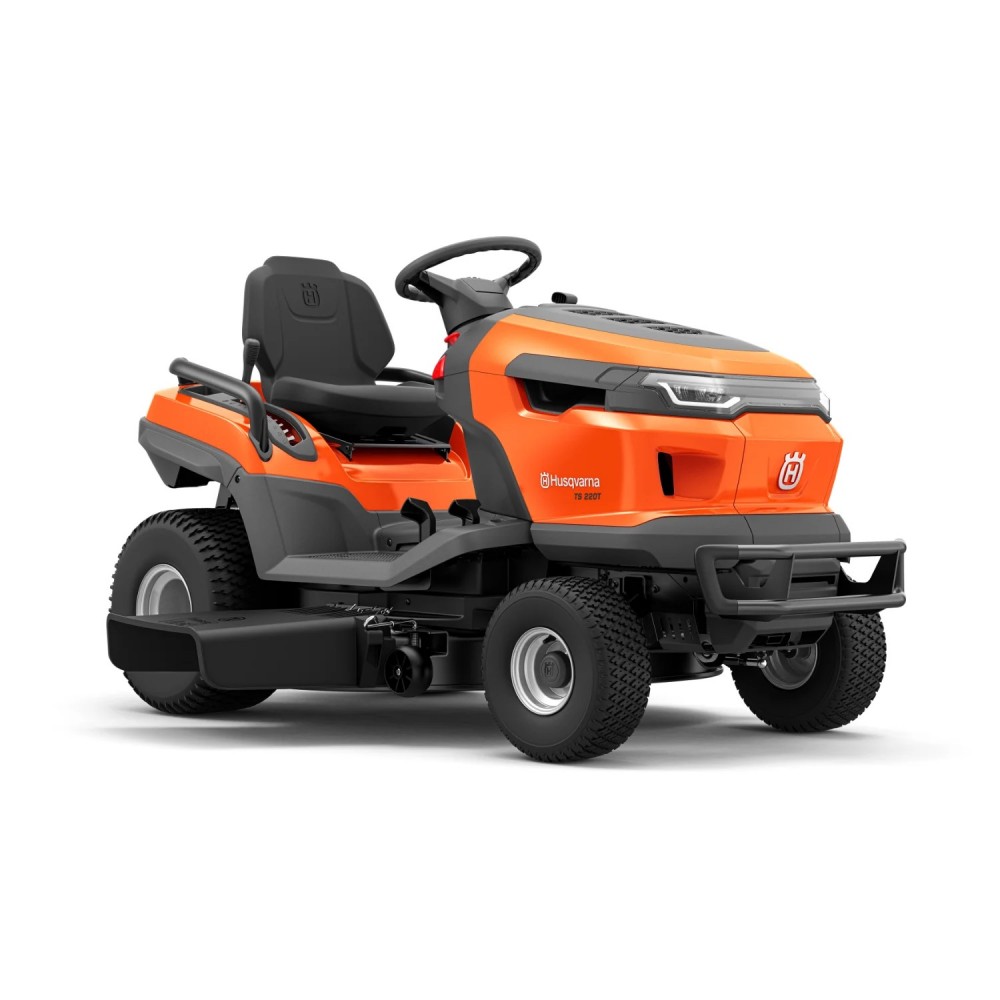

Husqvarna TS220TD Lawn Tractor
Price
$7,299.00
Ex GST: $6,635.45Available From
Macksville - Call to check availability Newcastle - Call to check availabilityNot Available Online Or At Your Local Store?
High performance mowing and comfort-enhancing features
Husqvarna TS 220TD garden tractor offers comfort-enhancing features and efficient cutting to make the maintenance of large lawns a pleasant experience.
Easy-to-reach controls and levers, quickly adjusted seat, and handles contribute to high comfort and good ergonomics.
So does the cruise control that lets you rest your foot when mowing large unobstructed areas.
The 108 cm cutting deck offers excellent cutting performance and with a wide range of cutting heights, adjustments can be made to suit different needs and grass conditions.
The adjustment is spring assisted to reduce strain for operator.
TS 220TD also features anti-spin transmission, providing improved traction that facilitates driving in hilly terrain.
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance.
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance.
ROS (reverse operation system) is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.
There is also a brush guard to protect the front.
| Basic Information | |
|---|---|
| Designed For | Home Owners |
| Powered By | Petrol Engine |
| Engine Specifications | |
| Engine Brand | Husqvarna |
| Engine Model | HV764AE |
| Power Output (kW / hp) | 17.00 / 22 |
| Fuel System | Carburettor |
| Lubrication | Fully pressurised automotive-style oil pump w/spin-on oil filter |
| Drive System | |
| Drive System | Hydrostatic - Foot Control |
| Transmission | Tuff Torq K46 with Auto Diff-Lock |
| Cruise Control | Yes |
| Diff Lock | Automatic |
| Max. Forward Speed (km/h) | 10 |
| Max. Reverse Speed (km/h) | 6 |
| Steering | |
| Steering | Steering Wheel |
| Front Pivot Bar | Heavy-duty cast iron |
| Front Axle | Cast Iron |
| Chassis | |
| Chassis Type | Robotically welded frame assembly |
| Frame | Heavy-duty 12-gauge steel frame |
| Hood | Front pivot, high impact with quick removal design |
| R.O.P.S. Frame | No |
| Bumper Bar | Yes |
| Electrical System | |
| Battery | 300 cold crank amps |
| Charging System | Flywheel alternator - 15 amp regulated |
| Headlights | LED high Illumination |
| System Monitors | Digital Hour Meter, Service Reminder, Oil Alert, Battery Amp Meter, Brake Alert, PTO Alert |
| Safety Systems | Neutral Start, Operator Presence, Reverse Safety Switch, Brake Pedal Lock, Reverse Mowing Technology |
| Operation | |
| PTO Clutch | Electronic fingertip engagement allows you to engage & disengage the mowing deck saving you time and energy |
| Brakes | Automotive-style disc |
| Seat | Medium Back |
| Other Specifications | |
| Front Tyres | 15.00 x 6.00 |
| Rear Tyres | 20.00 x 10.00 - 8 |
| Fuel Tank Capacity | 5.7 |
| Mowing Deck | |
| Cutting Width (cm / Inches) | 108 / 42 |
| Deck Build | Stamped/Pressed Steel |
| Cutting Height Adjustments | 1 Inches to 5 Inches - 5 position |
| Anti Scalping Wheels | None |
| Mulch Kit | Optional |
| Deck Spindles | 2 - Steel cap and triple lip sealed |
| Deck Pulleys | Split steel spindle pulleys, Oversized heavy-duty idlers |
| Deck Attach/Removal | Tools Required |
| Deck Wash Port | No |
| Warranty | |
| Machine (Domestic Use) | 2 Years ( 5 Years with HusqvarnaCare™ ) |
| Machine (Commercial Use) | 90 Days |
| Engine (Domestic use) | 2 Years ( 5 Years with HusqvarnaCare™ ) |
| Engine (Commercial Use) | 90 Days |
