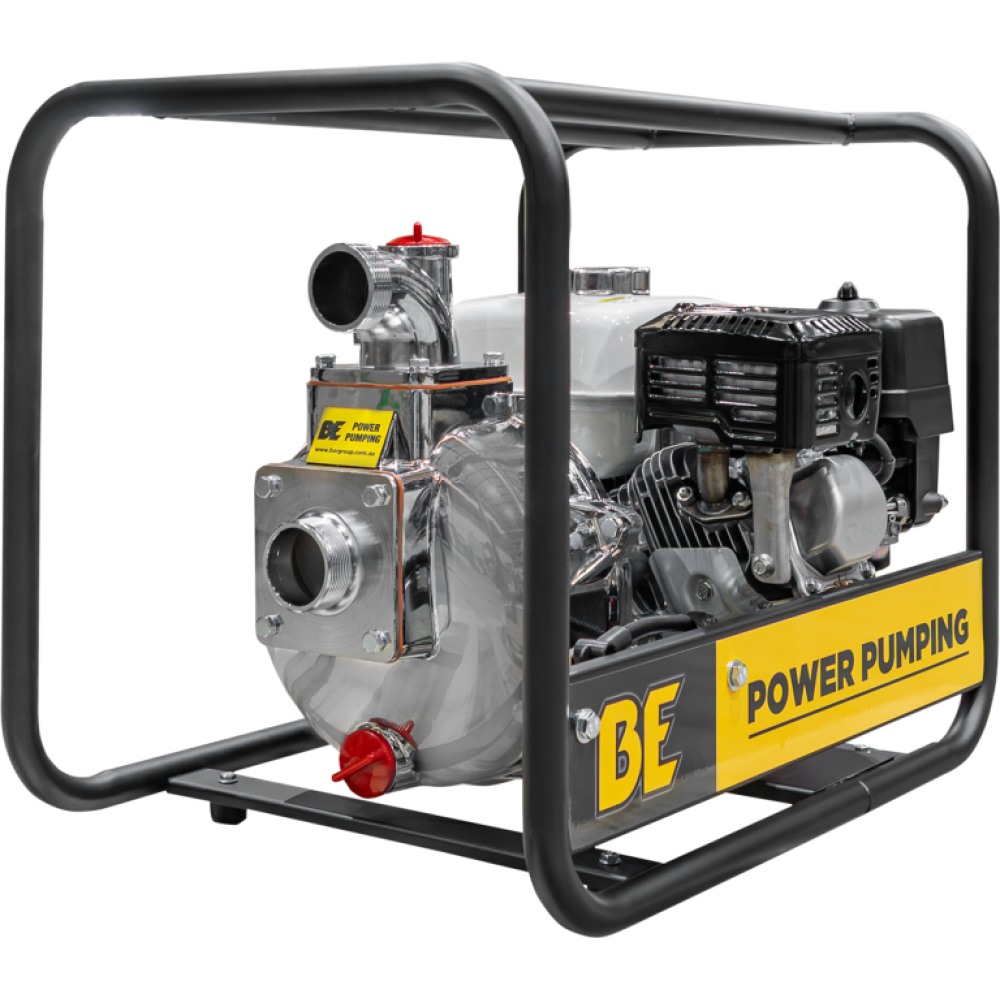

BAR 2″ Water Transfer Pump

Features

• Move large volumes of water over short periods of time.
• These high quality units are the consumers’ choice for high flow water transfer, tank filling, dewatering and water tankers.
• Applications:
  • High-volume water transfer
  • Fast-fill tanker applications
  • Flood irrigation
  • Construction site dewatering
  • Water carts, dust suppression

Performance

• Flow: 800 L/min
• Head: 33 m
• Suction: 7 m

Pump

• Type: Clean Water
• Inlet: 2″ BSP
• Outlet: 2″ BSP
• Impeller: Single
• Material:
  • Front Casing: Marine Grade Aluminium
  • Volute: Marine Grade Aluminium
  • Back Plate: Marine Grade Aluminium
  • Mechanical Seal: Carbon/Ceramic
  • Outlet: Marine Grade Aluminium
  • Casing Bolts: Zinc Plated Steel
  • Check Valve: Nitrile Rubber
  • Prime & Drain Plug: Polycarbonate
  • Priming & Drain Plug O rings:  Nitrile Rubber (NBR)
  • Finish: Chrome Plated Aluminium
  • Impeller: Cast Iron
• Seal: NBR & Carbon/ceramic/nitrile mechanical seal. Optional Viton Seal Kit Available (125 85.572.269V)

Unit & Frame

• Rugged Powder Coated Roll Frame

Engine

• Honda GX200 Series 6.5 Hp Petrol Engine
• Air-cooled 4-stroke OHV
• Recoil Start or Electric Start
• 3.1 L Fuel Tank
• Low Oil Alert
• Honda 3-Year Limited Warranty
